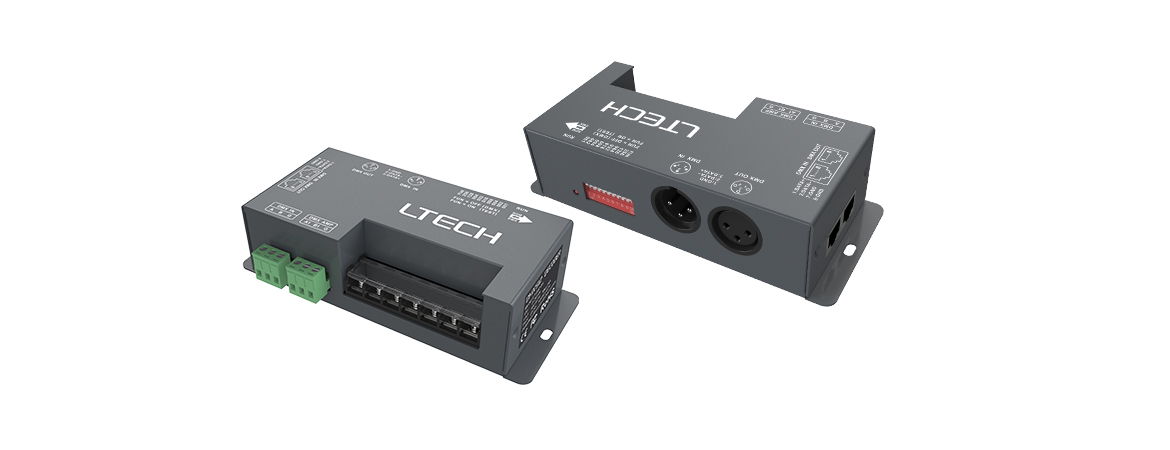

4CH CV DMX-PWM Decoder LT-840-6A

  • Description
  • Video
  • Download

LT-840-6A 4CH CV DMX-PWM Decoder LT-840-5A

Input signal DMX512
Input power DC5V~DC24V
Max load current 6A ×4CH   Max 24A
Max output power 120W/288W/576W(5V/12V/24V)
DMX512 socket XLR-3, RJ45, Green terminal (with signal amplification function)
Dimming range 0~100%
Working temperature -30℃~65℃
Dimension L163×W78×H40mm
Package Size L180×W82×H50mm
Weight (G.W) 445g
