LTECH Intelligent dimmable led driver have excellent performance:

Fully Digital circuit design, excellent performance and long working life
PWM digital dimming, maintain the best LED’s CRI(color rendering index)
Standard logarithmic dimming curve, the human eye visual feel more comfortable
60000:1 wide dimming range, 0-100% full dimming range，LED start at 0.1% possible
Power factor>0.99, Efficiency>86%, THD(Total Harmonic Distortion)<10%
Short circuit / Over-temperature /Over load protection
Current consistent in multi LED driver working, balanced light
Class 2 security isolation power supply
Compliant with SELV(Safety Extra Low Voltage) standard

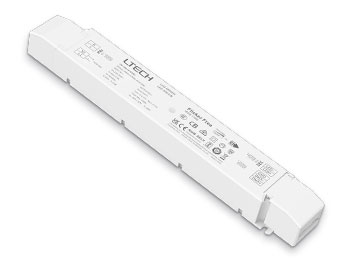

Model:	LM-100-24-G1M2
Dimming Interface:	DMX/RDM, Push DIM
Dimming Range:	0~100%, dimming depth: Max. 0.1%
Input Voltage Range:	200-240Vac
Power Factor:	PF>0.97/230Vac, at full load
Efficiency:	>93%
Output Voltage Range:	24Vdc ±0.5Vdc
Output Power Range:	0~100W
Output Current:	Max. 4.17A

Download Manual

DMX-36-24-F1P1

Model:	DMX-36-24-F1P1
Dimming interface	DMX512/RDM
Dimming range:	0-100% LED Startup Current<0.1%
Input voltage	100-240VAC
Efficiency	>85%
Output voltage	24VDC
Output power	36W
Output current	1.5A

Download Manual

75W 24VDC CV DMX DIM&CT Driver（200-240Vac）

LM-75-24-G2M2

Model:	LM-75-24-G2M2
Dimming Interface:	DMX/RDM, Push DIM/CCT
Dimming Range:	0~100%, dimming depth: Max. 0.1%
Input Voltage Range:	200-240Vac
Power Factor:	PF>0.97/230Vac, at full load
Efficiency:	>92%
Output Voltage Range:	24Vdc ±0.5Vdc
Output Power Range:	0~75W
Output Current:	Max. 3.12A

Download Manual

100W 24VDC CV DMX DIM&CT Driver（200-240Vac）

LM-100-24-G2M2

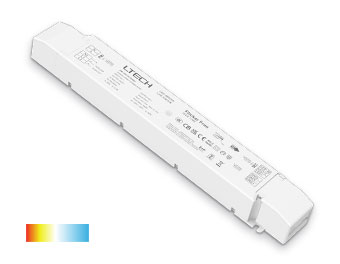

Model:	LM-100-24-G2M2
Dimming Interface:	DMX/RDM, Push DIM/CCT
Dimming Range:	0~100%, dimming depth: Max. 0.1%
Input Voltage Range:	200-240Vac
Power Factor:	PF>0.97/230Vac, at full load
Efficiency:	>93%
Output Voltage Range:	24Vdc ±0.5Vdc
Output Power Range:	0~100W
Output Current:	Max. 4.17A

Download Manual

LM-75-24-G1M2

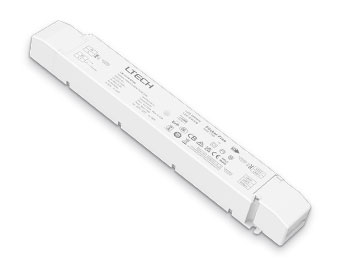

Model:	LM-75-24-G1M2
Dimming Interface:	DMX/RDM, Push Dim
Dimming Range:	0~100%, dimming depth: Max. 0.1%
Input Voltage Range:	200-240Vac, 277Vac (for North America only)
Power Factor:	PF>0.96/230Vac , PF>0.95/277Vac, at full load
Efficiency:	>91%
Output Voltage Range:	24Vdc ±0.5Vdc
Output Power Range:	0~75W
Output Current:	Max. 3.12A

Download Manual

LM-75-12-G1M2

Model:	LM-75-12-G1M2
Dimming Interface:	DMX/RDM, Push Dim
Dimming Range:	0~100%, dimming depth: Max. 0.1%
Input Voltage Range:	200-240Vac, 277Vac (for North America only)
Power Factor:	PF>0.96/230Vac , PF>0.95/277Vac, at full load
Efficiency:	>91%
Output Voltage Range:	12Vdc ±0.5Vdc
Output Power Range:	0~75W
Output Current:	Max. 6.25A

Download Manual

75W 12VDC CV DMX DIM&CT Driver（200-240Vac）

LM-75-12-G2M2

Model:	LM-75-12-G2M2
Dimming Interface:	DMX/RDM, Push DIM/CCT
Dimming Range:	0~100%, dimming depth: Max. 0.1%
Input Voltage Range:	200-240Vac
Power Factor:	PF>0.97/230Vac, at full load
Efficiency:	>91%
Output Voltage Range:	12Vdc ±0.5Vdc
Output Power Range:	0~75W
Output Current:	Max. 6.25A

Download Manual

DMX-36-12-F1P1

Model:	DMX-36-12-F1P1
Dimming interface	DMX512/RDM
Dimming range:	0-100% LED Startup Current<0.1%
Input voltage	100-240VAC
Efficiency	>85%
Output voltage	12VDC
Output power	36W
Output current	3A

Download Manual

DMX-75-12-F1M1

Model	DMX-75-12-F1M1
Dimming interface	DMX512/RDM
Dimming range	0-100%
Input voltage	100-240VAC
Power factor	>0.99
Efficiency	>86%
Output voltage	12VDC
Output power	75W
Output current	6.2A

Download Manual

DMX-75-24-F1M1

Model	DMX-75-24-F1M1
Dimming interface	DMX512/RDM
Dimming range	0-100%
Input voltage	100-240VAC
Power factor	>0.99
Efficiency	>86%
Output voltage	24VDC
Output power	75W
Output current	3.1A

Download Manual

150W 24VDC CV DMX LED Intelligent Driver

DMX-150-24-F2M1

Model:	DMX-150-24-F2M1
Dimming Interface:	DMX512 / RDM, Push Dim
Dimming Range:	0~100%, LED start at 0.1% possible.
Input Voltage Range:	100-240Vac ±10%
Power Factor:	PF>0.99/115Vac , PF>0.95/230Vac, at full load
Efficiency:	>91.5%
Output Voltage:	24Vdc
Output Power:	Max. 150W
Input Current:	115Vac≤1.6A, 230Vac≤0.8A

Download Manual

150W 12VDC CV DMX LED Intelligent Driver

DMX-150-12-F4M1

Model:	DMX-150-12-F4M1
Dimming Interface:	DMX512 / RDM, Push Dim
Dimming Range:	0~100%, LED start at 0.1% possible.
Input Voltage Range:	100-240Vac ±10%
Power Factor:	PF>0.99/115Vac , PF>0.95/230Vac, at full load
Efficiency:	>91%
Output Voltage:	12Vdc
Output Power:	Max. 150W
Input Current:	115Vac≤1.6A, 230Vac≤0.8A

Download Manual

DMX-150-24-F3M1

Model:	DMX-150-24-F3M1
Dimming Interface:	DMX512 / RDM, Push Dim
Dimming Range:	0~100%, LED start at 0.1% possible.
Input Voltage Range:	100-240Vac ±10%
Power Factor:	PF>0.99/115Vac , PF>0.95/230Vac, at full load
Efficiency:	>91.5%
Output Voltage:	24Vdc
Output Power:	Max. 150W
Input Current:	115Vac≤1.6A, 230Vac≤0.8A

Download Manual

DMX-150-24-F4M1

Model:	DMX-150-24-F4M1
Dimming Interface:	DMX512 / RDM, Push Dim
Dimming Range:	0~100%, LED start at 0.1% possible.
Input Voltage Range:	100-240Vac ±10%
Power Factor:	PF>0.99/115Vac , PF>0.95/230Vac, at full load
Efficiency:	>92%
Output Voltage:	24Vdc
Output Power:	150W
Input Current:	115Vac≤1.6A, 230Vac≤0.8A

Download Manual

DMX-150-24-F1M1

Model	DMX-150-24-F1M1
Dimming interface	DMX512/RDM
Dimming range	0-100%
Input voltage	100-240VAC
Power factor	>0.99
Efficiency	>86%
Output voltage	24VDC
Output power	150W
Output current	6.25A

Download Manual

DMX-150-12-F1M1

Model	DMX-150-12-F1M1
Dimming interface	DMX512/RDM
Dimming range	0-100%
Input voltage	100-240VAC
Power factor	>0.99
Efficiency	>86%
Output voltage	12VDC
Output power	150W
Output current	12.5A

Download Manual
