3CH CV DMX-PWM Decoder LT-8048

  • Description
  • Video
  • Download

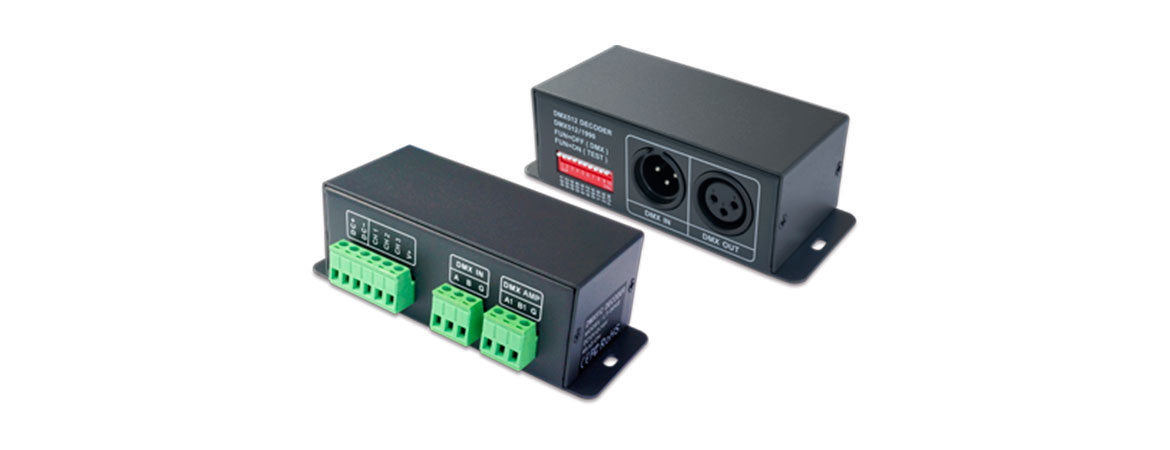

LT-8048 3CH CV DMX-PWM Decoder

Input signal DMX512
Input power DC12V~DC48V
Max load current 4A ×3CH   Max 12A
Max output power 144W/432W/576W(12V/36V/48V)
DMX512 socket XLR-3, Green terminal (with signal amplification function)
Dimming range 0~100%
Working temperature -30℃~65℃
Dimension L125×W52×H40mm
Package Size L135×W70×H50mm
Weight (G.W) 300g


Click the following icon to download
