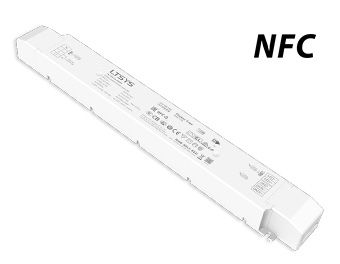

LTECH Intelligent dimmable led driver have excellent performance:
| Rubycon capacitor | |
| Dimming Interface: | DMX512/RDM, Push DIM |
| DC Voltage Range: | 220-240V |
| AC Voltage Range: | 220-240V~ |
| Power Factor: | PF>0.98/230V~(at full load) |
| Efficiency: | 93% |
| Fluctuation Level: | High frequency exemption level. |
| Output Voltage: | 24Vdc |
| Output Current: | Max. 6.25A |
| Output Power: | 0~150W |
| Dimming Range: | 0~100%, down to 0.01% |
| Certification: | CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,ROHS,BIS |
| Warranty: | 5 years |
| Rubycon capacitor | |
| Dimming Interface: | DMX512/RDM, Push DIM |
| DC Voltage Range: | 200-280Vdc |
| AC Voltage Range: | 198-264Vac |
| Input Voltage: | 220-240Vac |
| Power Factor: | PF>0.98/230Vac (at full load) |
| Efficiency: | 94% |
| Fluctuation Level: | High frequency exemption level. |
| Output Voltage: | 24Vdc |
| Output Current: | Max. 10A |
| Output Power: | 0~240W |
| Dimming Range: | 0~100%, down to 0.01% |
| Certification: | CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,ERP,ROHS |
| Warranty: | 5 years |
| Rubycon capacitor | |
| Dimming Interface: | DMX512/RDM, Push DIM |
| DC Voltage Range: | 200-280Vdc |
| AC Voltage Range: | 198-264Vac |
| Input Voltage: | 220-240Vac |
| Power Factor: | PF>0.98/230Vac (at full load) |
| Efficiency: | 94% |
| Fluctuation Level: | High frequency exemption level. |
| Output Voltage: | 24Vdc |
| Output Current: | Max. 10A |
| Output Power: | 0~240W |
| Dimming Range: | 0~100%, down to 0.01% |
| Certification: | CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,ERP,ROHS |
| Warranty: | 5 years |
| Rubycon capacitor | |
| Dimming Interface: | DMX512/RDM,DALI-2 DT8,Push |
| Output Feature: | Isolation |
| Input Voltage: | 220-240Vac |
| Power Factor: | PF>0.98/230Vac (at full load) |
| Efficiency: | 93% |
| Fluctuation Level: | High frequency exemption level. |
| Output Voltage: | 24Vdc |
| Output Current: | Max. 6.25A (1.56Ax4CH) |
| Output Power: | 0~150W |
| Dimming Range: | 0~100%, down to 0.1% |
| Certification: | CCC,BIS,CE,KC,ERP,ROHS |
| Warranty: | 5 years |
| Rubycon capacitor | |
| Dimming Interface: | DMX512/RDM, Push DIM |
| Input Voltage: | 200-240Vdc / 200-280Vdc |
| Power Factor: | PF>0.95/230Vac , at full load |
| Efficiency: | 88% |
| Fluctuation Level: | High frequency exemption level. |
| Output Voltage: | 24Vdc |
| Output Current: | Max. 1.5A |
| Output Power: | 0~36W |
| Dimming Range: | 0~100%, down to 0.1% |
| Certification: | CCC,TUV,CE,KC,RCM,ENEC,CB,EAC,ROHS |
| Warranty: | 5 years |
| Rubycon capacitor | |
| Dimming Interface: | DMX/RDM, Push DIM/CCT |
| Input Voltage: | 120-277Vac |
| Power Factor: | PF>0.99/120Vac, PF>0.95/230Vac, PF>0.9/277Vac (at full load) |
| Efficiency: | 93% |
| Fluctuation Level: | High frequency exemption level. |
| Output Voltage: | 24Vdc |
| Output Current: | Max. 4.17A |
| Output Power: | 0-100W |
| Dimming Range: | 0~100%, down to 0.1% |
| Certification: | FCC,CE,ROHS,UL |
| Warranty: | 5 years |
| Rubycon capacitor | |
| Dimming Interface: | DMX/RDM, Push DIM |
| Input Voltage: | 120-277Vac |
| Power Factor: | PF>0.99/120Vac, PF>0.95/230Vac, PF>0.9/277Vac (at full load) |
| Efficiency: | 93% |
| Fluctuation Level: | High frequency exemption level. |
| Output Voltage: | 24Vdc |
| Output Current: | Max. 4.17A |
| Output Power: | 0-100W |
| Dimming Range: | 0~100%, down to 0.1% |
| Certification: | FCC,CE,ROHS,UL |
| Warranty: | 5 years |
| Rubycon capacitor | |
| Dimming Interface: | DMX/RDM, Push DIM/CCT |
| Input Voltage: | 120-277Vac |
| Power Factor: | PF>0.99/120Vac, PF>0.95/230Vac, PF>0.9/277Vac (at full load) |
| Efficiency: | 90% |
| Fluctuation Level: | High frequency exemption level. |
| Output Voltage: | 12Vdc |
| Output Current: | Max. 5A |
| Output Power: | 0-60W |
| Dimming Range: | 0~100%, down to 0.1% |
| Certification: | FCC,CE,ROHS,UL |
| Warranty: | 5 years |
| Rubycon capacitor | |
| Dimming Interface: | DMX/RDM, Push DIM |
| Input Voltage: | 120-277Vac |
| Power Factor: | PF>0.99/120Vac, PF>0.95/230Vac, PF>0.9/277Vac (at full load) |
| Efficiency: | 90% |
| Fluctuation Level: | High frequency exemption level. |
| Output Voltage: | 12Vdc |
| Output Current: | Max. 5A |
| Output Power: | 0-60W |
| Dimming Range: | 0~100%, down to 0.1% |
| Certification: | FCC,CE,ROHS,UL |
| Warranty: | 5 years |
| Rubycon capacitor | |
| Dimming Interface: | DMX512/RDM,Push DIM/CCT |
| Input Voltage: | 220-240Vac 200-280Vdc |
| Power Factor: | PF>0.98/230Vac, at full load |
| Efficiency: | 93% |
| Fluctuation Level: | High frequency exemption level. |
| Output Voltage: | 24Vdc |
| Output Current: | Max. 6.25A |
| Output Power: | 0~150W |
| Dimming Range: | 0~100%, dimming depth: Max. 0.1% |
| Certification: | CCC,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,ERP,ROHS |
| Warranty: | 5 years |
| Rubycon capacitor | |
| Dimming Interface: | DMX/RDM, Push DIM |
| Input Voltage: | 220-240Vac |
| Power Factor: | PF>0.98/230Vac, at full load |
| Efficiency: | 93% |
| Fluctuation Level: | High frequency exemption level. |
| Output Voltage: | 24Vdc |
| Output Current: | Max. 4.17A |
| Output Power: | 0~100W |
| Dimming Range: | 0~100%, dimming depth: Max. 0.1% |
| Certification: | CCC,CE,CB,UKCA,FCC,ROHS |
| Warranty: | 5 years |
| Rubycon capacitor | |
| Dimming Interface: | DMX/RDM, Push DIM/CCT |
| Input Voltage: | 220-240Vac |
| Power Factor: | PF>0.98/230Vac, at full load |
| Efficiency: | 93% |
| Fluctuation Level: | High frequency exemption level. |
| Output Voltage: | 24Vdc |
| Output Current: | Max. 4.17A |
| Output Power: | 0~100W |
| Dimming Range: | 0~100%, dimming depth: Max. 0.1% |
| Certification: | CCC,CE,CB,UKCA,,ERP,ROHS |
| Warranty: | 5 years |
| Rubycon capacitor | |
| Dimming Interface: | DMX/RDM, Push DIM |
| Input Voltage: | 220-240Vac |
| Power Factor: | PF>0.97/230Vac, at full load |
| Efficiency: | 92% |
| Fluctuation Level: | High frequency exemption level. |
| Output Voltage: | 24Vdc |
| Output Current: | Max. 3.125A |
| Output Power: | 0~75W |
| Dimming Range: | 0~100%, dimming depth: Max. 0.1% |
| Certification: | CCC,BIS,CE,CB,UKCA,ERP,ROHS |
| Warranty: | 5 years |
