dali controller

LTECH Intelligent dimmable led driver have excellent performance:

  • Constant current DMX dimming drivers have many power type to choose that meet different customers’need.

  • Flicker-free,High frequency exemption level.

  • External DIP switch, workable with LED lights at different power.

  • Over temp. / Over voltage / Over load / Short circuit protection,recover automatically.

  • Total digital circuit design,outstanding function with long lifetime.

  • Meet SELV voltage standard.

Adopt revolutionary T-PWM deep dimming technology



CC DMX512 Dimmable Driver
    • SE-12-100-500-W1M
      SE-12-100-500-W1M
      Rubycon capacitor
      Dimming Interface: DMX512/RDM
      DC Voltage Range: 120-300Vdc
      AC Voltage Range: 100-240Vac
      Input Voltage: 115Vac/230Vac
      Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load
      Efficiency: 84%
      Fluctuation Level: No visible flicker/High frequency exemption level
      Output Voltage: 9-42Vdc
      Output Current: 100-500mA
      Output Power: 0.9W~12.15W
      Dimming Range: 0~100%, down to 0.01%
      Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,CUL,UL,ERP,ROHS
      Warranty: 5 years（Rubycon capacitor）
      [field:title/]
      Download Manual


    • SE-12-100-500-W2M
      SE-12-100-500-W2M
      Rubycon capacitor
      Dimming Interface: DMX512/RDM
      DC Voltage Range: 120-300Vdc
      AC Voltage Range: 100-240Vac
      Input Voltage: 115Vac/230Vac
      Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load
      Efficiency: 84%
      Fluctuation Level: No visible flicker/High frequency exemption level
      Output Voltage: 9-42Vdc
      Output Current: 100-500mA
      Output Power: 0.9W~12.15W
      Dimming Range: 0~100%, down to 0.01%
      Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,CUL,UL,ERP,ROHS
      Warranty: 5 years（Rubycon capacitor）
      [field:title/]
      Download Manual


    • SE-40-300-1050-W2M
      SE-40-300-1050-W2M
      Rubycon capacitor
      Dimming Interface: DMX512/RDM
      DC Voltage Range: 120-300Vdc
      AC Voltage Range: 100-240Vac
      Input Voltage: 115Vac/230Vac
      Power Factor:  PF>0.9/230Vac, at full load
      Efficiency: 88%
      Fluctuation Level: No visible flicker/High frequency exemption level
      Output Voltage: 9-42Vdc
      Output Current: 300-1050mA
      Output Power: 2.7W-40W
      Dimming Range: 0~100%, down to 0.01%
      Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ROHS
      Warranty: 5 years（Rubycon capacitor）
      [field:title/]
      Download Manual


    • SE-20-100-700-W1M
      SE-20-100-700-W1M
      Rubycon capacitor
      Dimming Interface: DMX512/RDM
      DC Voltage Range: 120-300Vdc
      AC Voltage Range: 100-240Vac
      Input Voltage: 115Vac/230Vac
      Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load
      Efficiency: 86%
      Fluctuation Level: No visible flicker/High frequency exemption level
      Output Voltage: 9-42Vdc
      Output Current: 100-700mA
      Output Power: 0.9W~20.4W
      Dimming Range: 0~100%, down to 0.01%
      Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ROHS
      Warranty: 5 years（Rubycon capacitor）
      [field:title/]
      Download Manual


    • SE-20-100-700-W2M
      SE-20-100-700-W2M
      Rubycon capacitor
      Dimming Interface: DMX512/RDM
      DC Voltage Range: 120-300Vdc
      AC Voltage Range: 100-240Vac
      Input Voltage: 115Vac/230Vac
      Power Factor:  PF>0.95/115Vac , PF>0.90/230Vac, at full load
      Efficiency: 86%
      Fluctuation Level: No visible flicker/High frequency exemption level
      Output Voltage: 9-42Vdc
      Output Current: 100-700mA
      Output Power: 0.9W~20.4W
      Dimming Range: 0~100%, down to 0.01%
      Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,CUL,UL,ROHS
      Warranty: 5 years（Rubycon capacitor）
      [field:title/]
      Download Manual


    • SE-10-350-700-W1M
      SE-10-350-700-W1M
      Rubycon capacitor
      Dimming Interface: DMX512/RDM
      Input Voltage: 100-240Vac Max. 265Vac
      Power Factor:  PF>0.95/115Vac , PF>0.80/230Vac,at full load
      Efficiency: 75%
      Fluctuation Level: No video flicker / High frequency exemption assessment level.
      Output Voltage: 2-12Vdc
      Output Current: 350-700mA
      Output Power: 0.7W~8.4W
      Dimming Range: 0~100%, 0.01% dimming depth.
      Certification: CCC,CB,CE,RCM,TUV,UKCA,ROHS
      Warranty: 5 years
      [field:title/]
      Download Manual

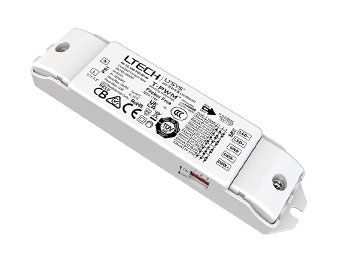

    • SE-12-350-700-W1M
      SE-12-350-700-W1M
      Rubycon capacitor
      Dimming Interface: DMX512/RDM
      Input Voltage: 100-240Vac Max. 265Vac
      Power Factor:  PF>0.97/115Vac , PF>0.85/230Vac, at full load
      Efficiency: 81%
      Fluctuation Level: No video flicker / High frequency exemption assessment level.
      Output Voltage: 10-24Vdc
      Output Current: 350-700mA
      Output Power: 3.5W~12W
      Dimming Range: 0~100%, 0.01% dimming depth.
      Certification: CCC,CB,CE,RCM,TUV,UKCA,ROHS
      Warranty: 5 years
      [field:title/]
      Download Manual

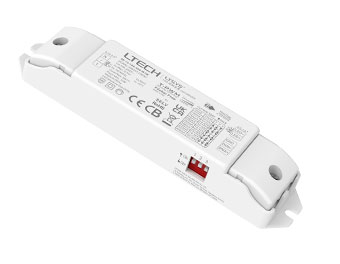

    • SE-12-100-400-W1M
      SE-12-100-400-W1M
      Rubycon capacitor
      Dimming Interface: DMX512/RDM
      Input Voltage: 100-240Vac Max. 265Vac
      Power Factor:  PF>0.97/115Vac , PF>0.85/230Vac, at full load
      Efficiency: 82%
      Fluctuation Level: No video flicker / High frequency exemption assessment level.
      Output Voltage: 10-42Vdc
      Output Current: 100-400mA
      Output Power: 1W~12W
      Dimming Range: 0~100%, 0.01% dimming depth.
      Certification: CB,CE,UKCA,ROHS
      Warranty: 5 years
      [field:title/]
      Download Manual
