dali controller

LTECH Intelligent dimmable led driver have excellent performance:

  • T-PWM digital dimming, maintains CRI (color rendering index).
  • Support 0/1-10V, RX, 10V PWM, Push Dim.
  • Dimming range: 0~100%, LED start at 0.01% possible.
  • Short circuit / Over-heat / Over load / Non-load protection.
Adopt revolutionary T-PWM deep dimming technology



CV 0/1-10V Dimmable Driver

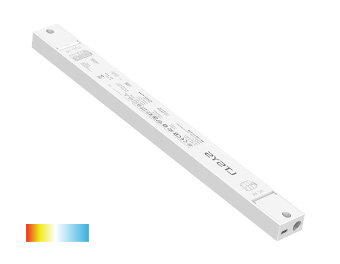

    • SN-150-24-G2A
      SN-150-24-G2A
      Rubycon capacitor
      Dimming Interface:0-10V(1-10V,10V PWM,RX)
      DC Voltage Range:220-240V
      AC Voltage Range:220-240V~
      Power Factor:PF> 0.97(at full load)
      Efficiency:93%
      Fluctuation Level:High frequency exemption level.
      Output Voltage:24Vdc
      Output Current:Max. 6.25A
      Output Power:0~150W
      Dimming Range:0~100%, down to 0.01%
      Certification:CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,ROHS,BIS
      Warranty:5 years
      [field:title/]
      Download Manual

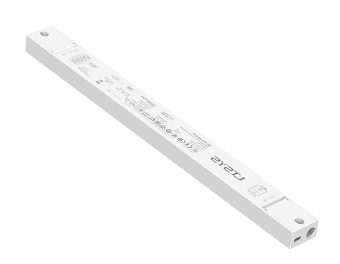

    • SN-150-24-G1A
      SN-150-24-G1A
      Rubycon capacitor
      Dimming Interface:0-10V(1-10V,10V PWM,RX)
      DC Voltage Range:220-240V
      AC Voltage Range:220-240V~
      Power Factor:PF> 0.97(at full load)
      Efficiency:93%
      Fluctuation Level:High frequency exemption level.
      Output Voltage:24Vdc
      Output Current:Max. 6.25A
      Output Power:0~150W
      Dimming Range:0~100%, down to 0.01%
      Certification:CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,ROHS,BIS
      Warranty:5 years
      [field:title/]
      Download Manual

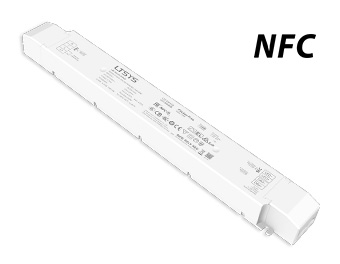

    • LM-150-24-G1A2F
      LM-150-24-G1A2F
      Rubycon capacitor
      Dimming Interface:0-10V(1-10V/10V PWM/RX), Push DIM
      DC Voltage Range:220-240V
      AC Voltage Range:220-240V~
      Power Factor:PF>0.98/230V~(at full load)
      Efficiency:93%
      Fluctuation Level:High frequency exemption level.
      Output Voltage:24Vdc
      Output Current:Max. 6.25A
      Output Power:0~150W
      Dimming Range:0~100%, down to 0.01%
      Certification:CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,ROHS
      Warranty:5 years
      [field:title/]
      Download Manual


    • LM-240-24-G1A2
      LM-240-24-G1A2
      Rubycon capacitor
      Dimming Interface: 0-10V (1-10V, 10V PWM, RX),PUSH
      DC Voltage Range: 200-280Vdc
      AC Voltage Range: 198-264Vac
      Input Voltage: 220-240Vac
      Power Factor:  PF>0.98/230Vac (at full load)
      Efficiency: 94%
      Fluctuation Level: High frequency exemption level.
      Output Voltage: 24Vdc
      Output Current: Max. 10A
      Output Power: 0~240W
      Dimming Range: 0~100%, down to 0.01%
      Certification: CCC,BIS,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,ERP,ROHS
      Warranty: 5 years
      [field:title/]
      Download Manual


    • LM-240-24-G2A2
      LM-240-24-G2A2
      Rubycon capacitor
      Dimming Interface: 0-10V (1-10V, 10V PWM, RX),PUSH
      DC Voltage Range: 200-280Vdc
      AC Voltage Range: 198-264Vac
      Input Voltage: 220-240Vac
      Power Factor:  PF>0.98/230Vac (at full load)
      Efficiency: 94%
      Fluctuation Level: High frequency exemption level.
      Output Voltage: 24Vdc
      Output Current: Max. 10A
      Output Power: 0~240W
      Dimming Range: 0~100%, down to 0.01%
      Certification: CCC,BIS,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,ERP,ROHS
      Warranty: 5 years
      [field:title/]
      Download Manual


    • LM-36-12-G1A2
      LM-36-12-G1A2
      Rubycon capacitor
      Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM
      Input Voltage: 200-240Vac / 200-280Vdc
      Power Factor:  PF>0.95/230Vac , at full load
      Efficiency: 87%
      Fluctuation Level: High frequency exemption level.
      Output Voltage: 12Vdc
      Output Current: Max. 3A
      Output Power: 0~36W
      Dimming Range: 0~100%, dimming down to 0.1%
      Certification: CCC,BIS,TUV,CE,KC,RCM,ENEC,CB,EAC,UKCA,ROHS
      Warranty: 5 years
      [field:title/]
      Download Manual


    • LM-36-24-G1A2
      LM-36-24-G1A2
      Rubycon capacitor
      Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM
      Input Voltage: 200-240Vac / 200-280Vdc
      Power Factor:  PF>0.95/230Vac , at full load
      Efficiency: 88%
      Fluctuation Level: High frequency exemption level.
      Output Voltage: 24Vdc
      Output Current: Max. 1.5A
      Output Power: 0~36W
      Dimming Range: 0~100%, down to 0.1%
      Certification: CCC,BIS,TUV,CE,KC,RCM,ENEC,CB,EAC,UKCA,ROHS
      Warranty: 5 years
      [field:title/]
      Download Manual


    • LM-100-24-U2A2
      LM-100-24-U2A2
      Rubycon capacitor
      Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM/CCT
      Input Voltage: 120-277Vac
      Power Factor:  PF>0.99/120Vac, PF>0.95/230Vac, PF>0.9/277Vac (at full load)
      Efficiency: 93%
      Fluctuation Level: High frequency exemption level.
      Output Voltage: 24Vdc
      Output Current: Max. 4.17A
      Output Power: 0-100W
      Dimming Range: 0~100%, down to 0.1%
      Certification: FCC,CE,ROHS,UL
      Warranty: 5 years
      [field:title/]
      Download Manual


    • LM-100-24-U1A2
      LM-100-24-U1A2
      Rubycon capacitor
      Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM
      Input Voltage: 120-277Vac
      Power Factor:  PF>0.99/120Vac, PF>0.95/230Vac, PF>0.9/277Vac (at full load)
      Efficiency: 93%
      Fluctuation Level: High frequency exemption level.
      Output Voltage: 24Vdc
      Output Current: Max. 4.17A
      Output Power: 0-100W
      Dimming Range: 0~100%, down to 0.1%
      Certification: FCC,CE,ROHS,UL
      Warranty: 5 years
      [field:title/]
      Download Manual


    • LM-60-12-U1A2
      LM-60-12-U1A2
      Rubycon capacitor
      Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM
      Input Voltage: 120-277Vac
      Power Factor:  PF>0.99/120Vac, PF>0.95/230Vac, PF>0.9/277Vac (at full load)
      Efficiency: 90%
      Fluctuation Level: High frequency exemption level.
      Output Voltage: 12Vdc
      Output Current: Max. 5A
      Output Power: 0-60W
      Dimming Range: 0~100%, down to 0.1%
      Certification: FCC,CE,ROHS,UL
      Warranty: 5 years
      [field:title/]
      Download Manual


    • LM-150-24-G2A2
      LM-150-24-G2A2
      Rubycon capacitor
      Dimming Interface: 0-10V(1-10V/10V PWM/RX) DIM/CCT, Push DIM/CCT
      Input Voltage: 220-240Vac 200-280Vdc
      Power Factor:  PF>0.98/230Vac, at full load
      Efficiency: 93%
      Fluctuation Level: High frequency exemption level.
      Output Voltage: 24Vdc
      Output Current: Max. 6.25A
      Output Power: 0~150W
      Dimming Range: 0~100%, dimming depth: Max. 0.1%
      Certification: CCC,ENEC,EAC,KC,RCM,CB,CE,ROHS,BIS,ERP,UKCA
      Warranty: 5 years
      [field:title/]
      Download Manual


    • LM-150-12-G1A2
      LM-150-12-G1A2
      Rubycon capacitor
      Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM
      Input Voltage: 220-240Vac 200-280Vdc
      Power Factor:  PF>0.98/230Vac, at full load
      Efficiency: 92%
      Fluctuation Level: High frequency exemption level.
      Output Voltage: 12Vdc
      Output Current: Max. 12.5A
      Output Power: 0~150W
      Dimming Range: 0~100%, dimming depth: Max. 0.1%
      Certification: CCC,EAC,KC,RCM,CB,CE,ROHS,BIS,ERP,UKCA
      Warranty: 5 years
      [field:title/]
      Download Manual


    • LM-100-24-G1A2
      LM-100-24-G1A2
      Rubycon capacitor
      Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM
      Input Voltage: 220-240Vac
      Power Factor:  PF>0.98/230Vac, at full load
      Efficiency: 93%
      Fluctuation Level: High frequency exemption level.
      Output Voltage: 24Vdc
      Output Current: Max. 4.17A
      Output Power: 0~100W
      Dimming Range: 0~100%, dimming depth: Max. 0.1%
      Certification: CCC,BIS,CB,CE,ROHS
      Warranty: 5 years
      [field:title/]
      Download Manual

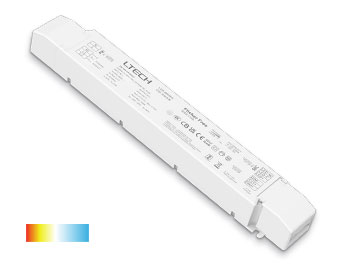

    • LM-100-24-G2A2
      LM-100-24-G2A2
      Rubycon capacitor
      Dimming Interface: 0-10V(1-10V/10V PWM/RX) DIM/CCT, Push DIM/CCT
      Input Voltage: 220-240Vac
      Power Factor:  PF>0.98/230Vac, at full load
      Efficiency: 93%
      Fluctuation Level: High frequency exemption level.
      Output Voltage: 24Vdc
      Output Current: Max. 4.17A
      Output Power: 0~100W
      Dimming Range: 0~100%, dimming depth: Max. 0.1%
      Certification: CCC,CE,CB,UKCA,ROHS
      Warranty: 5 years
      [field:title/]
      Download Manual

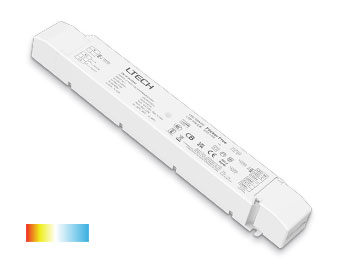

    • LM-75-24-G2A2
      LM-75-24-G2A2
      Rubycon capacitor
      Dimming Interface: 0-10V(1-10V/10V PWM/RX) DIM/CCT, Push DIM/CCT
      Input Voltage: 220-240Vac
      Power Factor:  PF>0.97/230Vac, at full load
      Efficiency: 92%
      Fluctuation Level: High frequency exemption level.
      Output Voltage: 24Vdc
      Output Current: Max. 3.125A
      Output Power: 0~75W
      Dimming Range: 0~100%, dimming depth: Max. 0.1%
      Certification: CCC,BIS,CE,CB,UKCA,ROHS
      Warranty: 5 years
      [field:title/]
      Download Manual


    • LM-75-24-G1A2
      LM-75-24-G1A2
      Rubycon capacitor
      Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM
      Input Voltage: 220-240Vac
      Power Factor:  PF>0.97/230Vac, at full load
      Efficiency: 92%
      Fluctuation Level: High frequency exemption level.
      Output Voltage: 24Vdc
      Output Current: Max. 3.125A
      Output Power: 0~75W
      Dimming Range: 0~100%, dimming depth: Max. 0.1%
      Certification: CCC,FCC,BIS,CE,CB,UKCA,ROHS
      Warranty: 5 years
      [field:title/]
      Download Manual


    • LM-75-12-G1A2
      LM-75-12-G1A2
      Rubycon capacitor
      Dimming Interface: 0-10V(1-10V/10V PWM/RX), Push DIM
      Input Voltage: 220-240Vac
      Power Factor:  PF>0.97/230Vac, at full load
      Efficiency: 91%
      Fluctuation Level: High frequency exemption level.
      Output Voltage: 12Vdc
      Output Current: Max. 6.25A
      Output Power: 0~75W
      Dimming Range: 0~100%, dimming depth: Max. 0.1%
      Certification: CCC,FCC,BIS,CE,CB,UKCA,ROHS
      Warranty: 5 years
      [field:title/]
      Download Manual
