1. T-PWM® super-deep dimming technology, with dimming starting from 0.1%
2. Flicker-free dimming across the entire range, meeting the High-Frequency Exemption Level.
3. Optimized for the Xiaolei Smart Home system, it leverages the Matter/Apple Home open ecosystem, allowing device interconnection and mutual control via Google Home, Amazon Alexa, Smart Things, L-Home, and voice control.
4. Parameter editing and driver control via the L-Home mobile App.
5. EU ErP Compliance: No-load and networked standby power consumption is <0.5W.
6. 0V No-Load Output prevents damage to LEDs caused by poor contact.
6. Protection against Over-Temperature, Over-Load, and Short-Circuit, with Auto-Recovery.

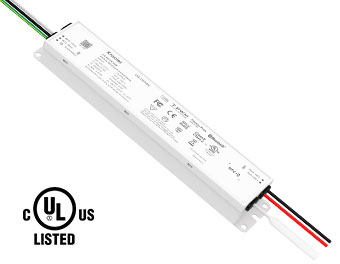

Bluetooth CV Dimmable Driver
Chemi-Con capacitors Dimming Interface: Bluetooth 5.0 SIG Mesh Input Voltage: 100-277V~ Power Factor: PF>0.95/100V~, PF>0.95/230V~, PF>0.85/277V~(at full load) Efficiency: 84%/100V~, 90%/230V~, 90%/277V~ Fluctuation Level: High frequency exemption level. Output Voltage: 24Vdc Output Current: Max. 2.5A Output Power: 0-60W Dimming Range: 0~100%, dimming down to 0.0001% Certification: UL,CUL,CE,FCC,ROHS Warranty: 5 years
Chemi-Con capacitors Dimming Interface: Bluetooth 5.0 SIG Mesh Input Voltage: 100-277V~ Power Factor: PF>0.95/100V~, PF>0.95/230V~, PF>0.9/277V~(at full load) Efficiency: 85%/100V~, 91%/230V~, 92%/277V~ Fluctuation Level: High frequency exemption level. Output Voltage: 24Vdc Output Current: Max. 4.0A Output Power: 0~96W Dimming Range: 0~100%, dimming down to 0.0001% Certification: UL,CUL,CE,FCC,ROHS Warranty: 5 years
Rubycon capacitor Dimming Interface: Bluetooth 5.0 SIG Mesh Input Voltage: 120-277Vac Power Factor: PF>0.99/120Vac, PF>0.95/230Vac, PF>0.9/277Vac (at full load) Efficiency: 91% Fluctuation Level: High frequency exemption level. Output Voltage: 24Vdc Output Current: Max. 2.5A Output Power: 0-60W Dimming Range: 0~100%, down to 0.1% Certification: FCC,CE,UL,CUL,ROHS Warranty: 5 years
Rubycon capacitor Dimming Interface: Bluetooth 5.0 SIG Mesh Input Voltage: 120-277Vac Power Factor: PF>0.99/120Vac, PF>0.95/230Vac, PF>0.9/277Vac (at full load) Efficiency: 91% Fluctuation Level: High frequency exemption level. Output Voltage: 24Vdc Output Current: Max. 2.5A Output Power: 0-60W Dimming Range: 0~100%, down to 0.1% Certification: FCC,CE,UL,CUL,ROHS Warranty: 5 years
Rubycon capacitor Dimming Interface: Bluetooth 5.0 SIG Mesh Input Voltage: 120-277Vac Power Factor: PF>0.99/120Vac, PF>0.95/230Vac, PF>0.9/277Vac (at full load) Efficiency: 93% Fluctuation Level: High frequency exemption level. Output Voltage: 24Vdc Output Current: Max. 4.13A Output Power: 0-100W Dimming Range: 0~100%, down to 0.1% Certification: FCC,CE,ROHS,UL,CUL Warranty: 5 years
Rubycon capacitor Dimming Interface: Bluetooth 5.0 SIG Mesh Input Voltage: 120-277Vac Power Factor: PF>0.99/120Vac, PF>0.95/230Vac, PF>0.9/277Vac (at full load) Efficiency: 93% Fluctuation Level: High frequency exemption level. Output Voltage: 24Vdc Output Current: Max. 4.17A Output Power: 0-100W Dimming Range: 0~100%, down to 0.1% Certification: FCC,CE,ROHS,UL,CUL Warranty: 5 years
![[field:title/]](/images/pdf.jpg "60W 24V UL Certification NFC CV Bluetooth LED driver LA-60-24-U1B Manual"){kind=small}
