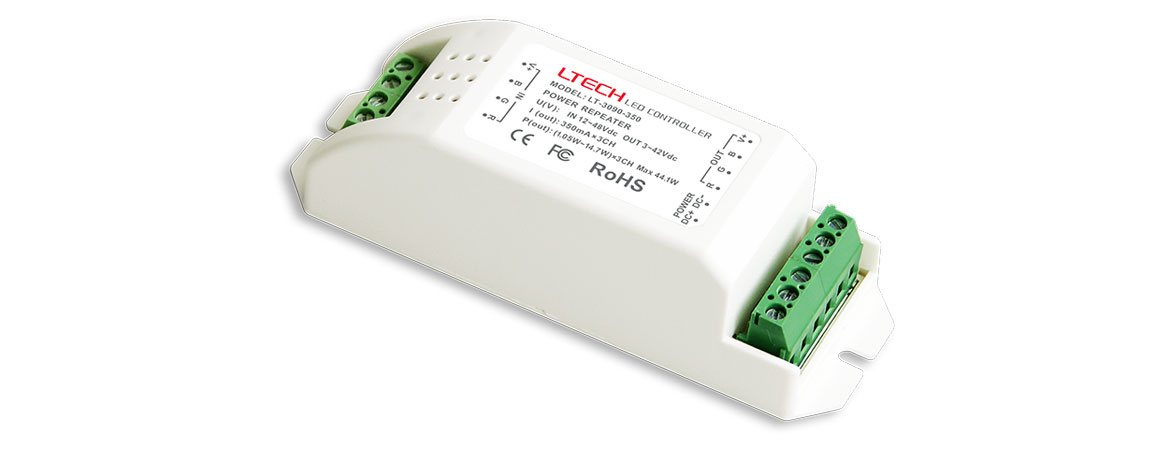

LT-3090-350 CC Power repeater |
|
| Input signal | PWM |
| Input voltage | DC12V~48V |
| Output voltage | DC3V~DC42V |
| Output current | CC 350mA ×3CH |
| Output power | 1.05W~14.7W ×3CH Max 44.1W |
| Output signal | CC PWM |
| working temperature | -30℃~55℃ |
| Dimension | L121×W39×H39(mm) |
|
Package Size |
L123×W42×H42(mm) |
| Weight (G.W) | 110g |
