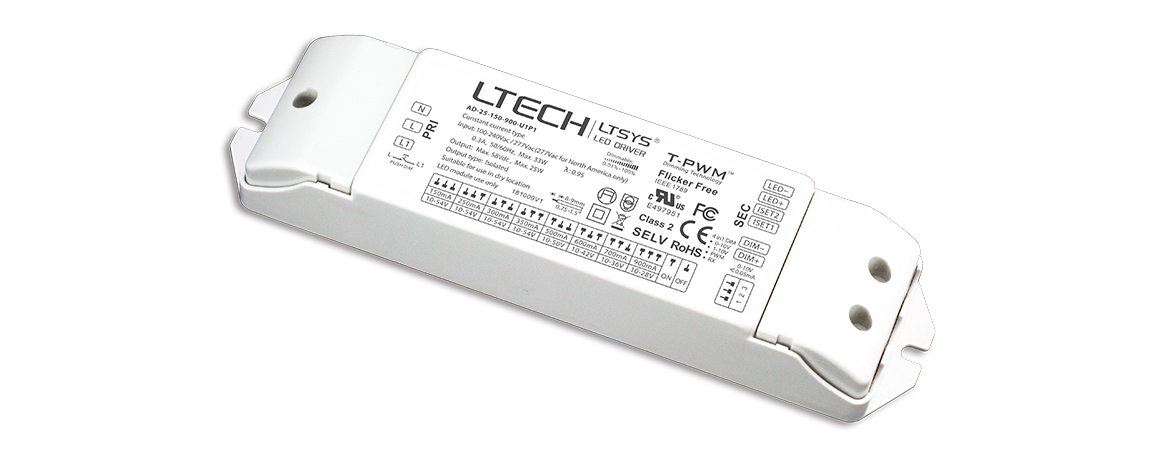

AD-25-150-900-U1P1 |
|
| 调光接口: | 0-10V(1-10V/PWM/RX), Push Dim |
| 调光范围: | 0-100% |
| 输入电压: | 100-277Vac ±10%, (Max. 90-305Vac) |
| 功率因数: | PF>0.97/115Vac, PF>0.93/230Vac, PF>0.85/277Vac(满载) |
| 效 率: | >85% |
| 电流精度: | ±5% |
| 输出电压: | 10-54VDC |
| 输出功率: | 1.5W~25W |
| 工作温度: | ta: -30℃~50℃ tc: 75℃ |
| 产品尺寸: | 175×44×30mm (L×W×H) |
| 包装尺寸: | 178×48×33mm (L×W×H) |
| 重量(毛重) | 175g±10g |
